celexon Expert electric height adjustable display stand Adjust-70120WS with wall mounting - 50cm
Tax included.
Downloads
Product safety information
Manufacturer & Responsible Person for the EU
celexon Europe GmbH
Gutenbergstraße 2
48282 Emsdetten
Germany
Contact
Tel.: +49 221 58834 50
E-Mail: info@celexon.de
Safety and warning instructions
Perfect in combination

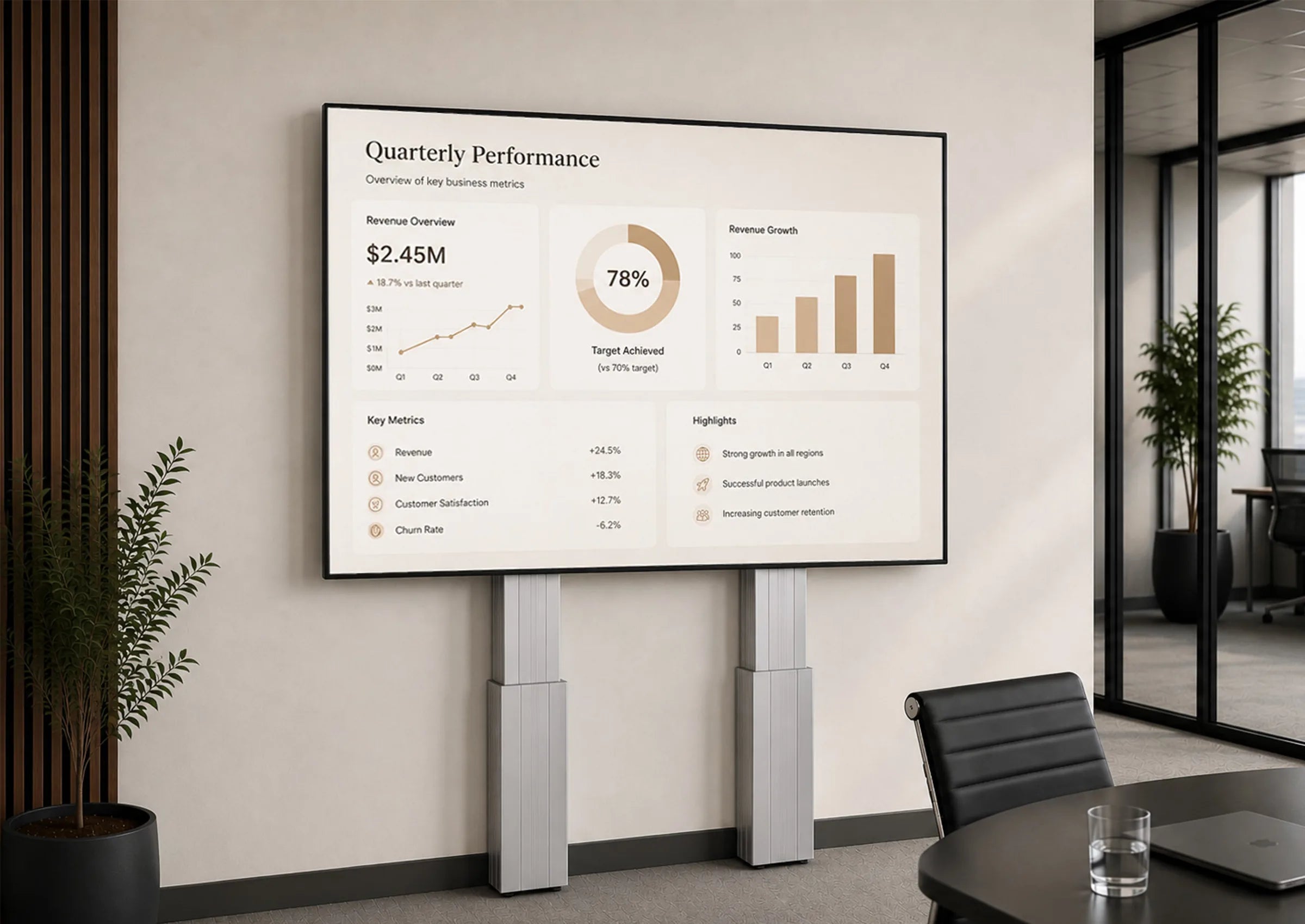

The "celexon Expert Display Stand Adjust-70120WS" is a wall mounted, electrically height adjustable display stand for 70" - 120" displays.
With a load capacity of up to 250kg, this display stand is perfectly suited for use in a range of rooms and can safely accommodate large and heavy displays from all suppliers.
The high quality processed, absolutely dimensionally stable aluminium columns with integrated, powerful motor incl. cable remote control (included in delivery) allows a simple height adjustment at the push of a button with 50cm stroke.
The possibility to combine the display with numerous accessories such as PC shelves, transport handles and whiteboard side wings further contributes to the increase of user comfort and to the improvement of the application possibilities in the training area.
The product is supplied disassembled in three packages. All packaging units are parcel service capable.
KEY INFORMATION:
- Heavy duty wall mount for (interactive) touch screen displays / monitors up to 120".
- Electrically height adjustable from 1190 - 1690mm (floor to middle of display holder)
- Extremely user-friendly display mounting by means of suspension rails with quick release system
- Display frame offers integrated cable management passages
- The motor system is concealed in the slim aluminium lifting columns and offers an adjustment range of 50 cm
- Powerful and extremely smooth running motor with 1500N, at sensational 47 mm feed/second
- Highest safety through integrated collision protection
- incl. cable control unit with two buttons
- Supports the following Vesa standards:
- Horizontal up to 1200mm (200, 280, 300, 400, 440, 580, 600, 684, 710, 730, 754, 800, 1200)
- Vertical up to 600mm (stepless)
- Frame & rolling frame in silver powder-coated
- Aluminium column silver anodised
- maximum load 250 kg
- 1285 x 155 x 1510 - 2010mm (WxDxH)
- Total system weight approx. 57 kg - highest stability even with large and heavy displays
Technical data
| Product name | celexon Expert electric height adjustable display stand Adjust-70120WS with wall mounting - 50cm |
| Article number | 1000013118 |
| GTIN/EAN | 4260094741937 |
| Product type | Display Stand |
| Product series | celexon wall Expert - electric |
| Installation | Floor / foot |
| Mount usage | Single mount |
| Minimum display diagonal | 70" |
| Maximum display diagonal | 120" |
| Load capacity | 250 kg |
| VESA standard | 200 x 100, 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, 400 x 100, 600 x 200, 600 x 400, 600 x 500, 600 x 600, 800 x 400, 800 x 500, 800 x 600, 1200 x 600 |
| Orientation | Landscape |
| Width in cm | 81.2 |
| Height in cm | 201 |
| Depth in cm | 15.5 |
| Weight in kg | 57.0 |
| Colour | Silver |
| Scope of delivery | Two-button control panel, mounting material, bracket, quick guide |
| Warranty period | 60 Month |
| Warranty type | Bringin service |
Here you will find more information about the warranty terms. Statutory warranty rights are not restricted by an additional manufacturer's warranty. Our liability for defects is governed by law. Warranty rights can be exercised free of charge.
